Every Klevo machine activates on approach and cleans in seconds. What separates the three series is whether the site can take a water connection, and how clean the entrance needs to be.
Cleans soles with a rotating roller brush and no water connection at all — plug it in and it works. Best where humidity is a concern or there is no water source nearby.
Klevo’s priority recommendation. A modular roller brush paired with a built-in wetting and drying cycle, meeting Class 100–1000 cleanroom requirements.
Same cleaning performance as the GS series, but a continuous ring-shaped track instead of individual rollers — a cleaner look with no dead corners.
Frame, sensing, safety and load rating are identical across the GG, GS and LS series. You are choosing a cleaning method and a length — not a different grade of machine.
| Body and frame | 304 stainless steel — corrosion-resistant, non-deformable |
| Activation | Infrared sensor detects a person within 30cm and triggers the brush within 0.2 seconds |
| Cleaning cycle | 3–4 seconds, adjustable from 1–999 seconds on the touch screen |
| Safety protection | Electrical leakage and surge protection, with automatic overload alarm |
| Working voltage | AC100–240V (customizable to local supply) |
| Working current | 1.6A |
| Running noise | Under 60dB |
| Maximum load bearing | 400kg |
| Supplied with | Stainless steel handrail |
Waterless cleaning · Class 1000–10000 · Modular roller brush
The GG series cleans shoe soles with a rotating roller brush and needs no water connection — installation is plug and play. Infrared sensors detect a person approaching and start the brush automatically; a default 3-second cycle cleans the sole, and a removable dust collection box below catches the debris. This waterless design suits sites where humidity is a concern or a water source is not available nearby.
As a person approaches, the infrared sensor detects them within a 30cm range and activates the machine within 0.2 seconds. The motor drives the roller brush, with bristles sitting 4mm above the pedal surface to make effective contact with the sole. Cleaning duration is set on the touch screen — from 1 to 999 seconds, with 3 seconds as the default.
Infrared sensor detects a person within 30cm and starts the machine in 0.2 seconds.
Roller brush bristles sit 4mm above the pedal and scrub the sole for the set cycle.
Loosened debris drops into the removable dust collection box at the base.
Walk through at a natural pace — the machine stops itself after the cycle.
| Cleaning mode | Rolling brush dry cleaning |
| Working voltage | AC100–240V (customizable) |
| Motor power | 200W (GG088–GG184) / 250W (GG232, GG280) |
| Working current | 1.6A |
| Power supply point | 360mm from base |
| Safety protection | Electrical leakage / surge protection |
| Running noise | < 60dB |
| Main material | SUS 304 stainless steel |
| Maximum load bearing | 400kg |
| Model | Boundary Dim. (mm) | Handrail Dim. (mm) | Function Area (mm) | Net Weight | Motor Power |
|---|---|---|---|---|---|
| KLW-GG088 | 880 × 765 × 145 | 980 × 900 | 610 × 550 | ~50 kg | 200 W |
| KLW-GG136 | 1360 × 765 × 145 | 1460 × 900 | 1190 × 550 | ~70 kg | 200 W |
| KLW-GG184 | 1840 × 765 × 145 | 1940 × 900 | 1670 × 550 | ~90 kg | 200 W |
| KLW-GG232 | 2320 × 765 × 145 | 2520 × 900 | 2250 × 550 | ~110 kg | 250 W |
| KLW-GG280 | 2800 × 765 × 145 | 2900 × 900 | 2630 × 550 | ~125 kg | 250 W |
Scroll the table sideways to see every column · all dimensions in millimetres (L × W × H)
Wet cleaning · Class 100–1000 · Klevo’s priority recommendation

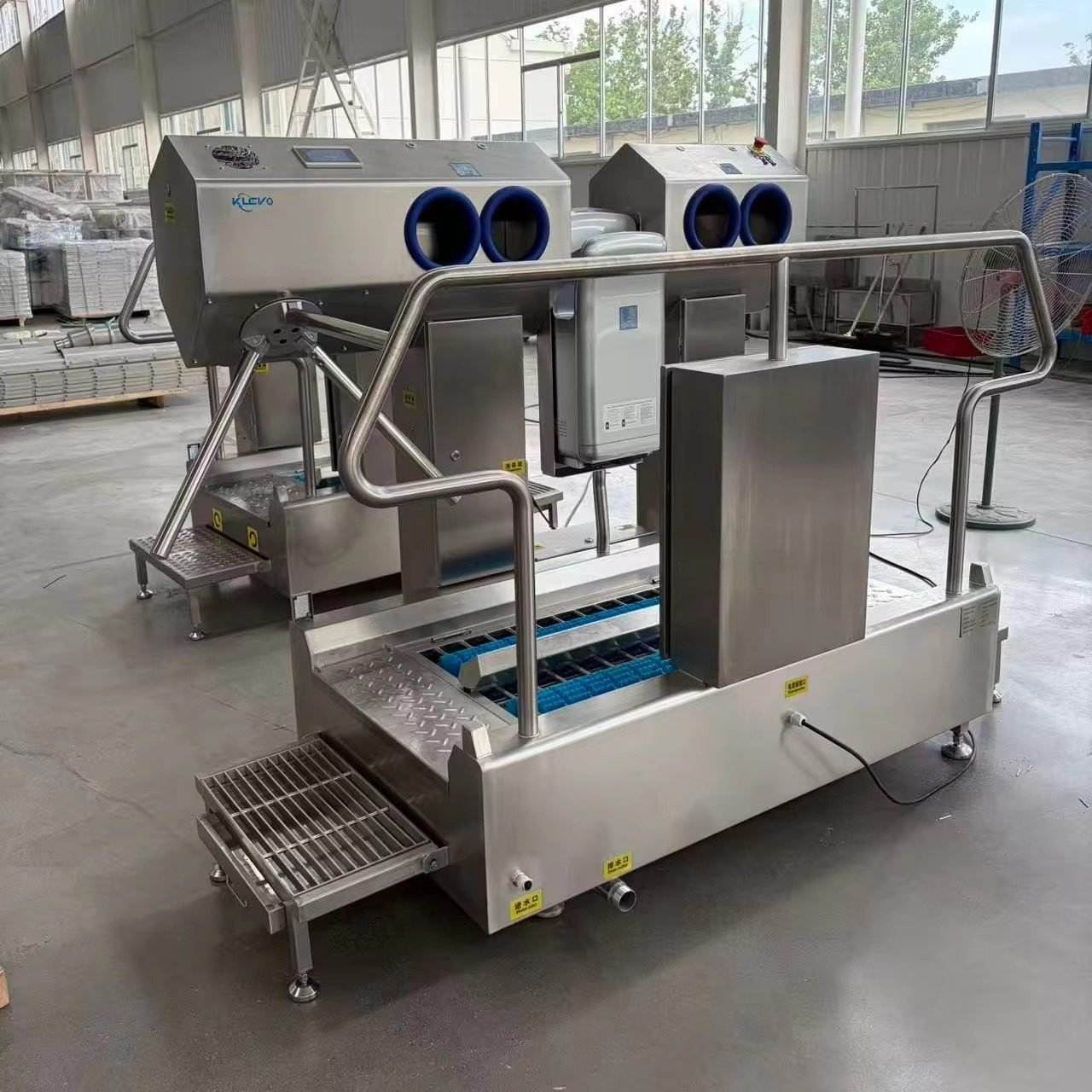

The GS series is Klevo’s priority recommendation, pairing a modular roller brush with a built-in wetting and drying cycle to meet Class 100–1000 cleanroom cleanliness requirements. Brush bristles sit 4mm above the footboard for effective sole contact, and a PVA absorbent pad in the drying zone lifts residual moisture from the sole in about 2 seconds. High-heeled shoes should not be walked on this machine.

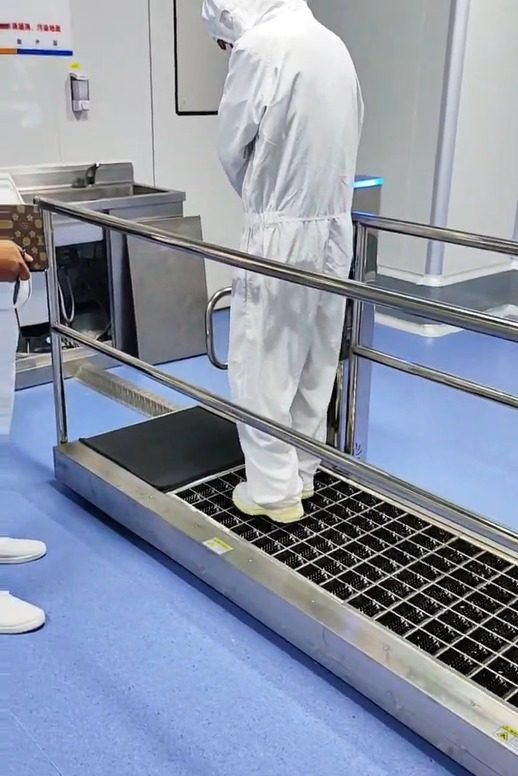

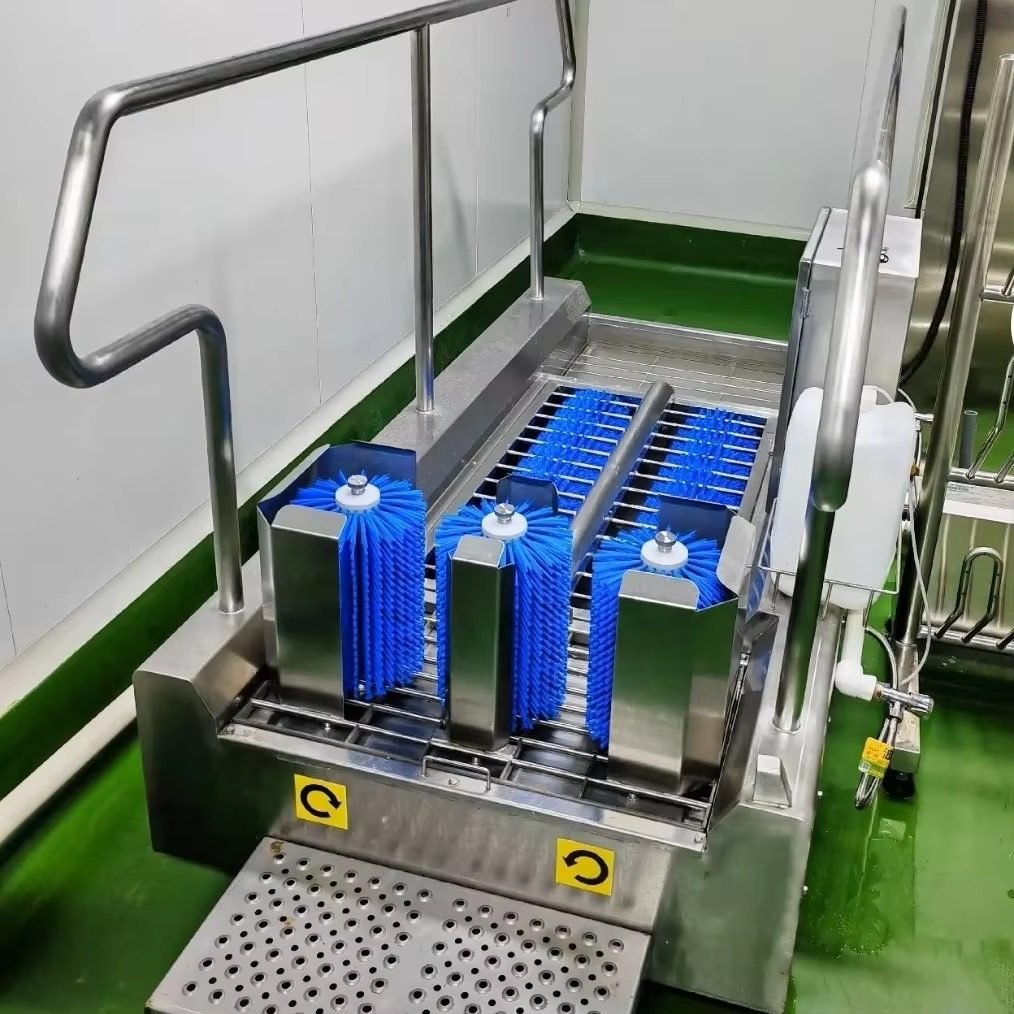

Personnel step onto the wetting zone, where the roller brush — driven by the motor — cleans the sole with bristles set 4mm above the footboard. They then step onto the PVA absorbent pad in the drying zone for about 2 seconds to lift residual moisture. Cleaning duration and the discharge interval are both set via the touch screen, from 1 to 999 seconds.
Infrared sensor detects a person within 30cm and starts the machine in 0.2 seconds.
Roller brush scrubs the sole in the wetting zone for roughly 3 seconds.
Step onto the PVA absorbent pad for about 2 seconds to lift residual moisture.
Dirty water drains automatically at the interval set on the touch screen.
| Cleaning mode | Rolling brush wet cleaning |
| Working voltage | AC100–240V (customizable) |
| Motor power | 200W (GS099–GS187) / 250W (GS236, GS286) |
| Water pump power | 45W |
| Working current | 1.6A |
| Inlet / outlet drainage | Fully automatic or semi-automatic |
| Absorbent pad material | PVA |
| Safety protection | Electrical leakage / surge protection |
| Running noise | < 60dB |
| Main material | SUS 304 stainless steel |
| Maximum load bearing | 400kg |
| Model | Boundary Dim. (mm) | Handrail Dim. (mm) | Cleaning Area (mm) | Drying Area (mm) | Water Capacity | Net Weight | Motor Power |
|---|---|---|---|---|---|---|---|
| KLW-GS099 | 990 × 765 × 145 | 1080 × 900 | 403 × 550 | 300 × 550 | ~6 L | ~55 kg | 200 W |
| KLW-GS139 | 1390 × 765 × 145 | 1480 × 900 | 594 × 550 | 500 × 550 | ~10 L | ~75 kg | 200 W |
| KLW-GS187 | 1870 × 765 × 145 | 1960 × 900 | 1073 × 550 | 500 × 550 | ~15 L | ~95 kg | 200 W |
| KLW-GS236 | 2360 × 765 × 145 | 2450 × 900 | 1558 × 550 | 500 × 550 | ~20 L | ~115 kg | 250 W |
| KLW-GS286 | 2860 × 765 × 145 | 2950 × 900 | 1558 × 550 | 1010 × 550 | ~25 L | ~130 kg | 250 W |
Scroll the table sideways to see every column · all dimensions in millimetres (L × W × H)
Wet cleaning · Class 100–1000 · No cleaning dead corners

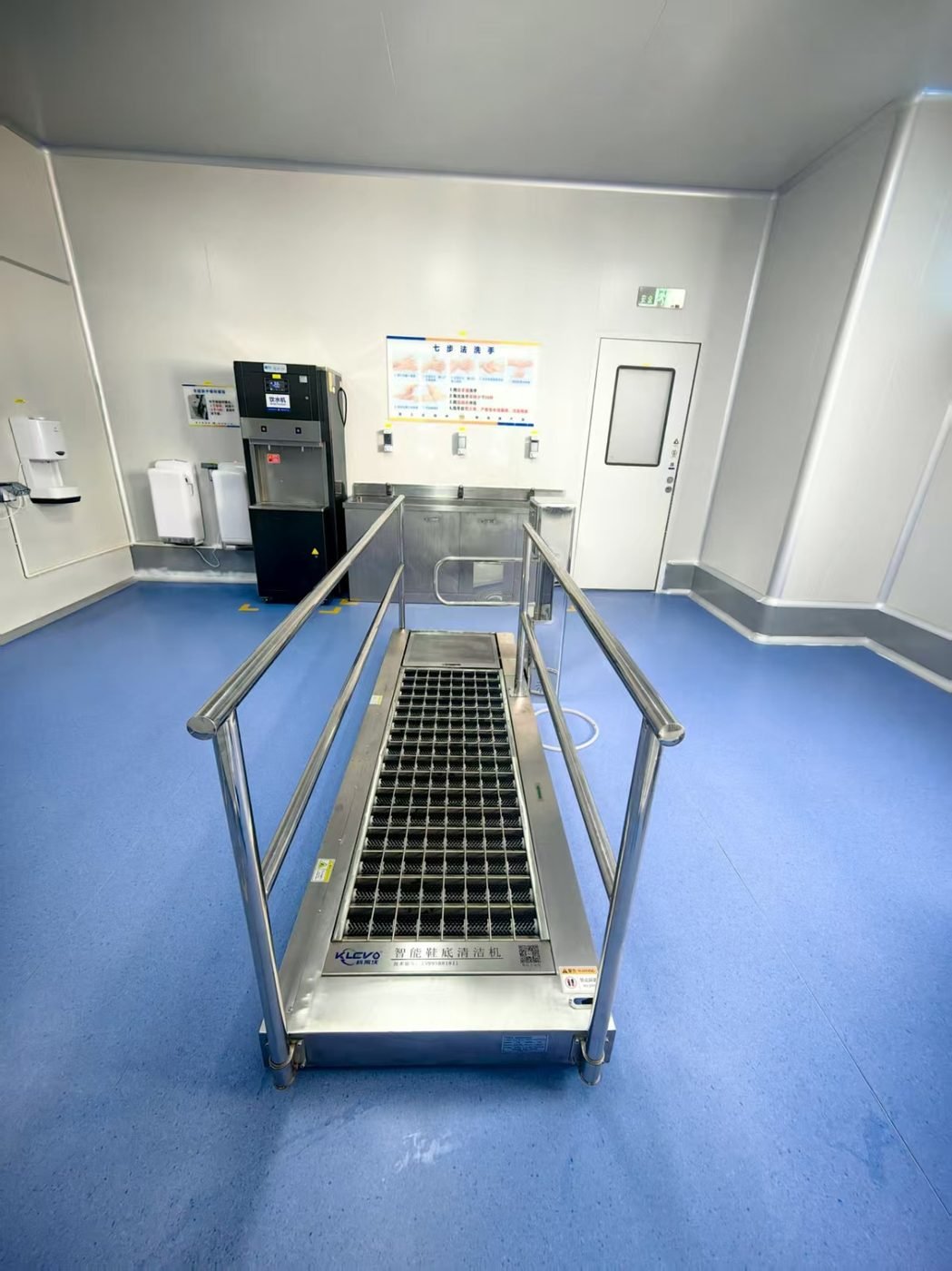

The LS series shares the GS series’ cleaning performance but uses a ring-shaped track-type brush instead of individual rollers, giving a more streamlined appearance with no cleaning dead corners. The elastic rubber-and-nylon track adapts to flat shoes, thick soles and heels alike through full-contact "elastic adhesion". Because of the track design, brush replacement is less straightforward and is best handled by trained personnel.
Personnel step onto the wetting zone, where the motor drives the track-type brush — bristles sit 2mm above the footboard for effective sole contact. They then step onto the PVA absorbent pad in the drying zone for about 2 seconds to lift residual moisture. Cleaning duration and the discharge interval are both set via the touch screen, from 1 to 999 seconds.
Infrared sensor detects a person within 30cm and starts the machine in 0.2 seconds.
The continuous track scrubs the whole sole — flats, thick soles and heels alike.
Step onto the PVA absorbent pad for about 2 seconds to lift residual moisture.
Dirty water drains automatically at the interval set on the touch screen.
| Cleaning mode | Track-type wet cleaning |
| Working voltage | AC100–240V (customizable) |
| Motor power | 200W (LS100–LS187) / 250W (LS248, LS286) |
| Water pump power | 45W |
| Working current | 1.6A |
| Inlet / outlet drainage | Fully automatic or semi-automatic |
| Absorbent pad material | PVA |
| Safety protection | Electrical leakage / surge protection |
| Running noise | < 60dB |
| Main material | SUS 304 stainless steel |
| Maximum load bearing | 400kg |

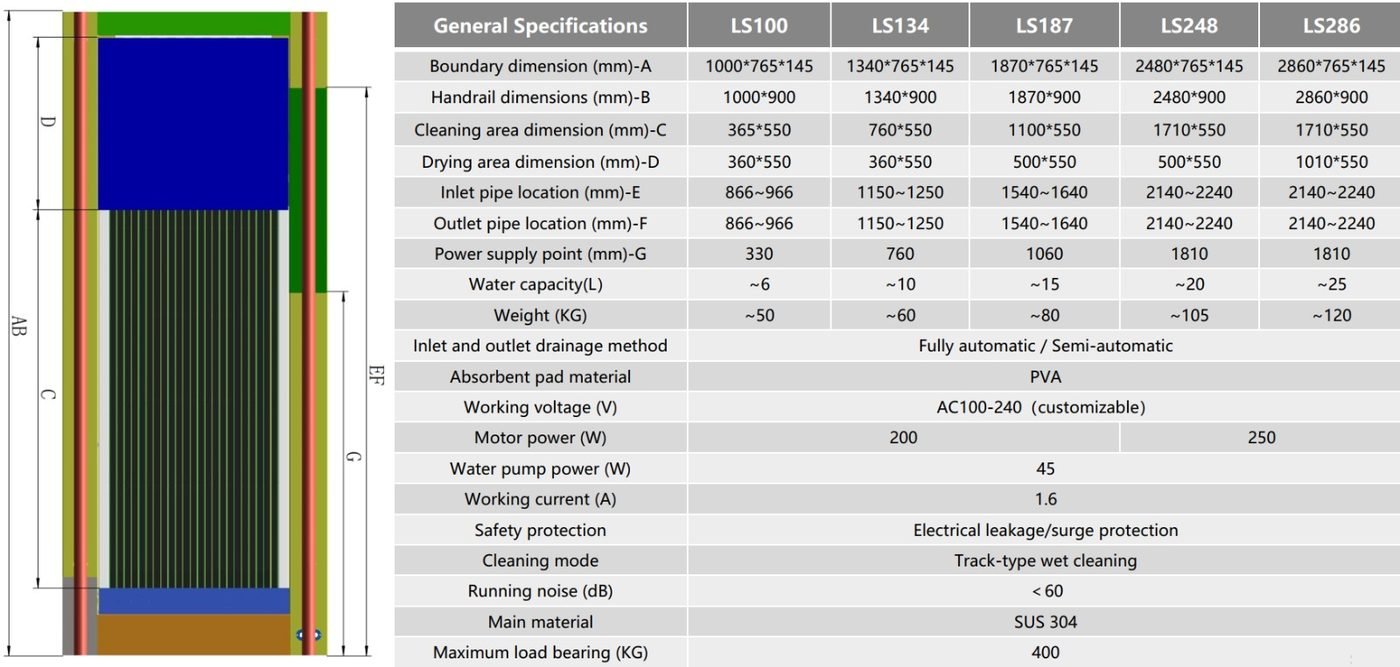

| Model | Boundary Dim. (mm) | Handrail Dim. (mm) | Cleaning Area (mm) | Drying Area (mm) | Water Capacity | Net Weight | Motor Power |
|---|---|---|---|---|---|---|---|
| KLW-LS100 | 1000 × 765 × 145 | 1000 × 900 | 365 × 550 | 360 × 550 | ~6 L | ~55 kg | 200 W |
| KLW-LS134 | 1340 × 765 × 145 | 1340 × 900 | 760 × 550 | 360 × 550 | ~10 L | ~75 kg | 200 W |
| KLW-LS187 | 1870 × 765 × 145 | 1870 × 900 | 1100 × 550 | 500 × 550 | ~15 L | ~95 kg | 200 W |
| KLW-LS248 | 2480 × 765 × 145 | 2480 × 900 | 1710 × 550 | 500 × 550 | ~20 L | ~115 kg | 250 W |
| KLW-LS286 | 2860 × 765 × 145 | 2860 × 900 | 1710 × 550 | 1010 × 550 | ~25 L | ~130 kg | 250 W |
Scroll the table sideways to see every column · all dimensions in millimetres (L × W × H)
Boundary dimensions determine the floor space each unit occupies; handrail dimensions determine the clear opening it needs. Custom sizes are available to order.
| Model | Series | Cleaning Mode | Boundary Dim. (mm) | Handrail Dim. (mm) | Water Capacity | Net Weight | Motor Power |
|---|---|---|---|---|---|---|---|
| KLW-GG088 | GG Series | Dry Roller Brush | 880 × 765 × 145 | 980 × 900 | — | ~50 kg | 200 W |
| KLW-GG136 | GG Series | Dry Roller Brush | 1360 × 765 × 145 | 1460 × 900 | — | ~70 kg | 200 W |
| KLW-GG184 | GG Series | Dry Roller Brush | 1840 × 765 × 145 | 1940 × 900 | — | ~90 kg | 200 W |
| KLW-GG232 | GG Series | Dry Roller Brush | 2320 × 765 × 145 | 2520 × 900 | — | ~110 kg | 250 W |
| KLW-GG280 | GG Series | Dry Roller Brush | 2800 × 765 × 145 | 2900 × 900 | — | ~125 kg | 250 W |
| KLW-GS099 | GS Series | Wet Roller Brush | 990 × 765 × 145 | 1080 × 900 | ~6 L | ~55 kg | 200 W |
| KLW-GS139 | GS Series | Wet Roller Brush | 1390 × 765 × 145 | 1480 × 900 | ~10 L | ~75 kg | 200 W |
| KLW-GS187 | GS Series | Wet Roller Brush | 1870 × 765 × 145 | 1960 × 900 | ~15 L | ~95 kg | 200 W |
| KLW-GS236 | GS Series | Wet Roller Brush | 2360 × 765 × 145 | 2450 × 900 | ~20 L | ~115 kg | 250 W |
| KLW-GS286 | GS Series | Wet Roller Brush | 2860 × 765 × 145 | 2950 × 900 | ~25 L | ~130 kg | 250 W |
| KLW-LS100 | LS Series | Wet Track-type Brush | 1000 × 765 × 145 | 1000 × 900 | ~6 L | ~55 kg | 200 W |
| KLW-LS134 | LS Series | Wet Track-type Brush | 1340 × 765 × 145 | 1340 × 900 | ~10 L | ~75 kg | 200 W |
| KLW-LS187 | LS Series | Wet Track-type Brush | 1870 × 765 × 145 | 1870 × 900 | ~15 L | ~95 kg | 200 W |
| KLW-LS248 | LS Series | Wet Track-type Brush | 2480 × 765 × 145 | 2480 × 900 | ~20 L | ~115 kg | 250 W |
| KLW-LS286 | LS Series | Wet Track-type Brush | 2860 × 765 × 145 | 2860 × 900 | ~25 L | ~130 kg | 250 W |
Scroll the table sideways to see every column · all dimensions in millimetres (L × W × H)

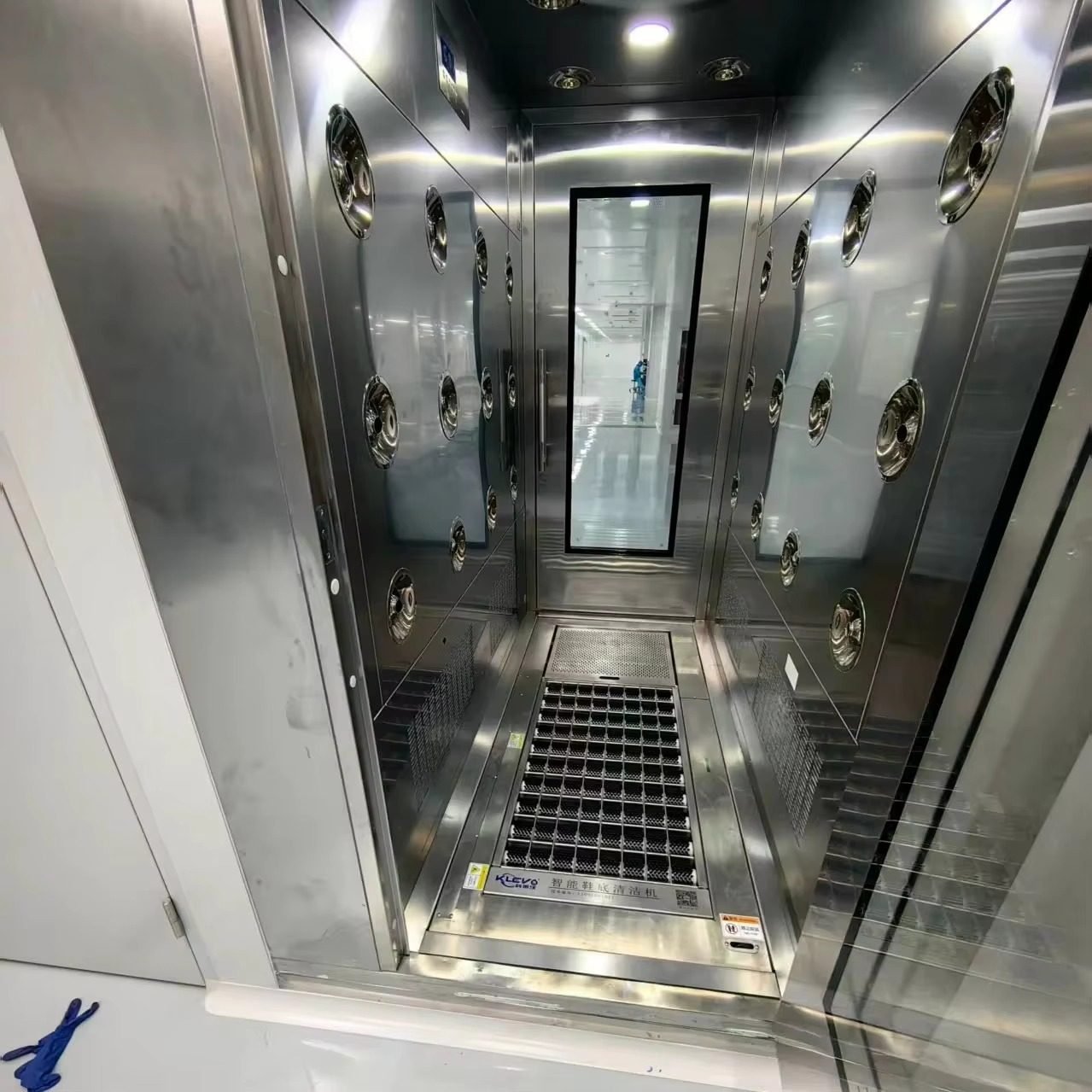

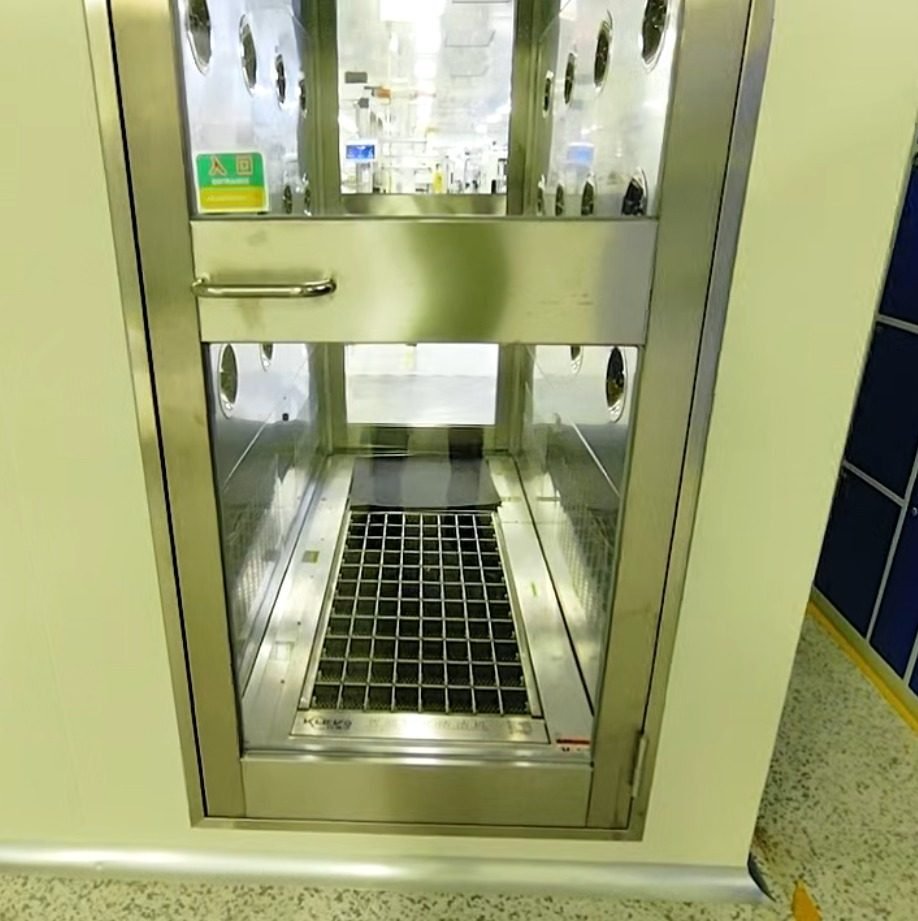

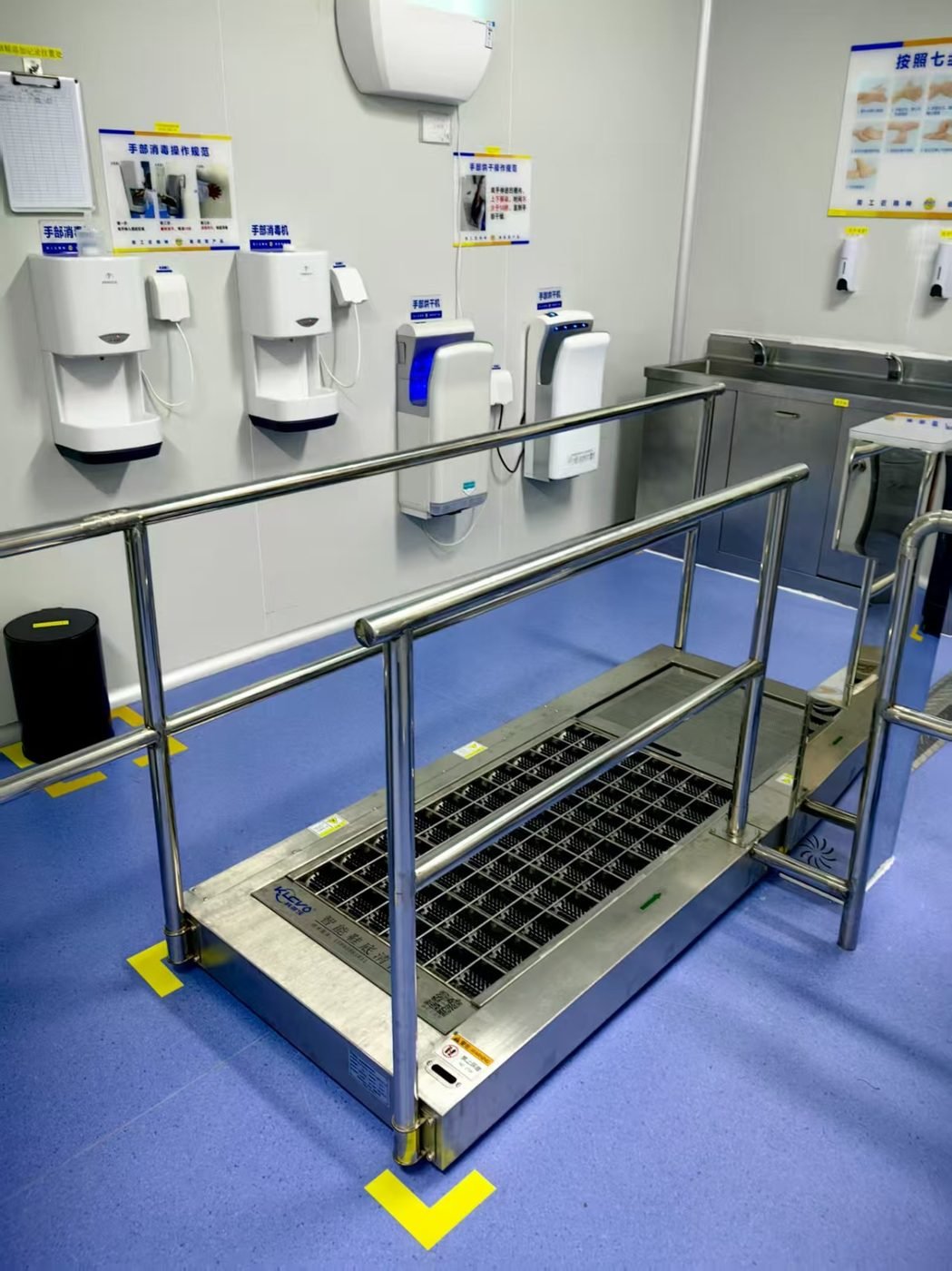

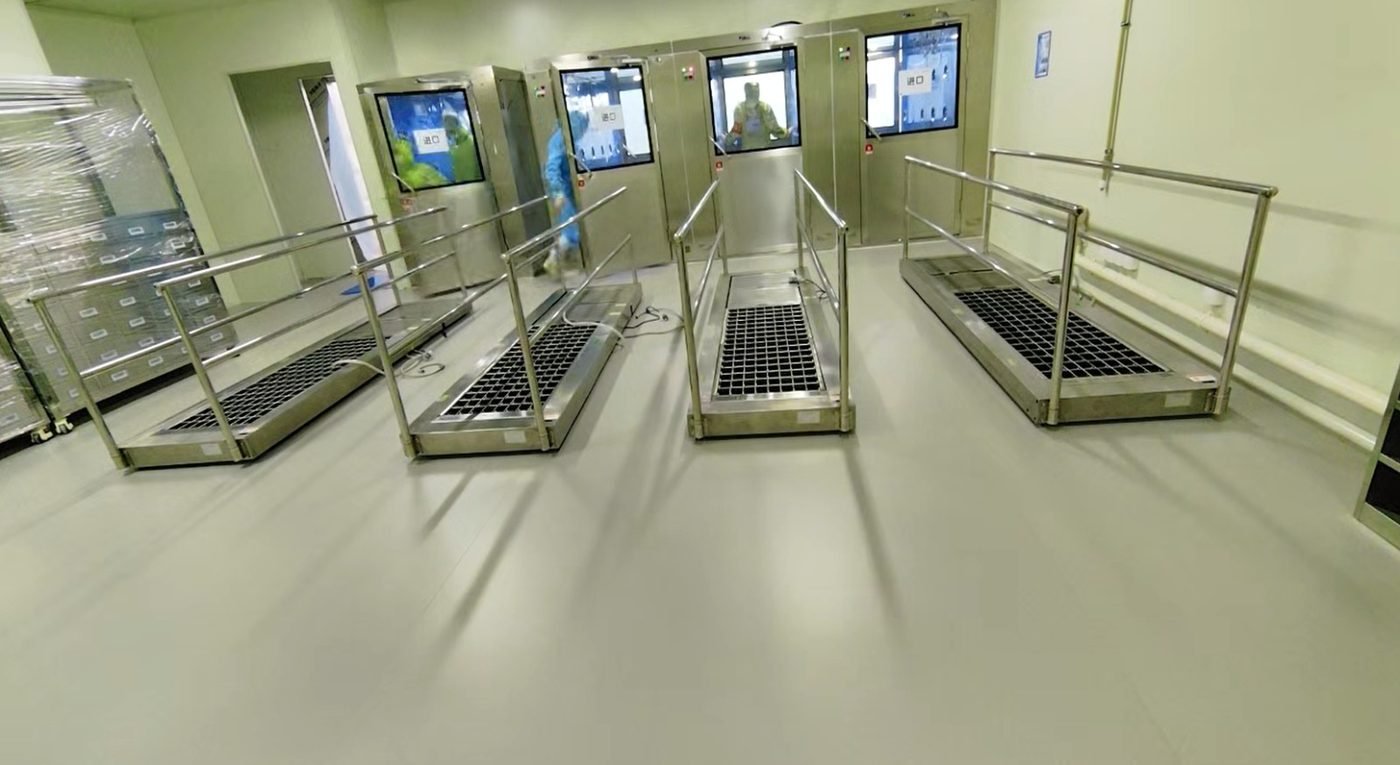

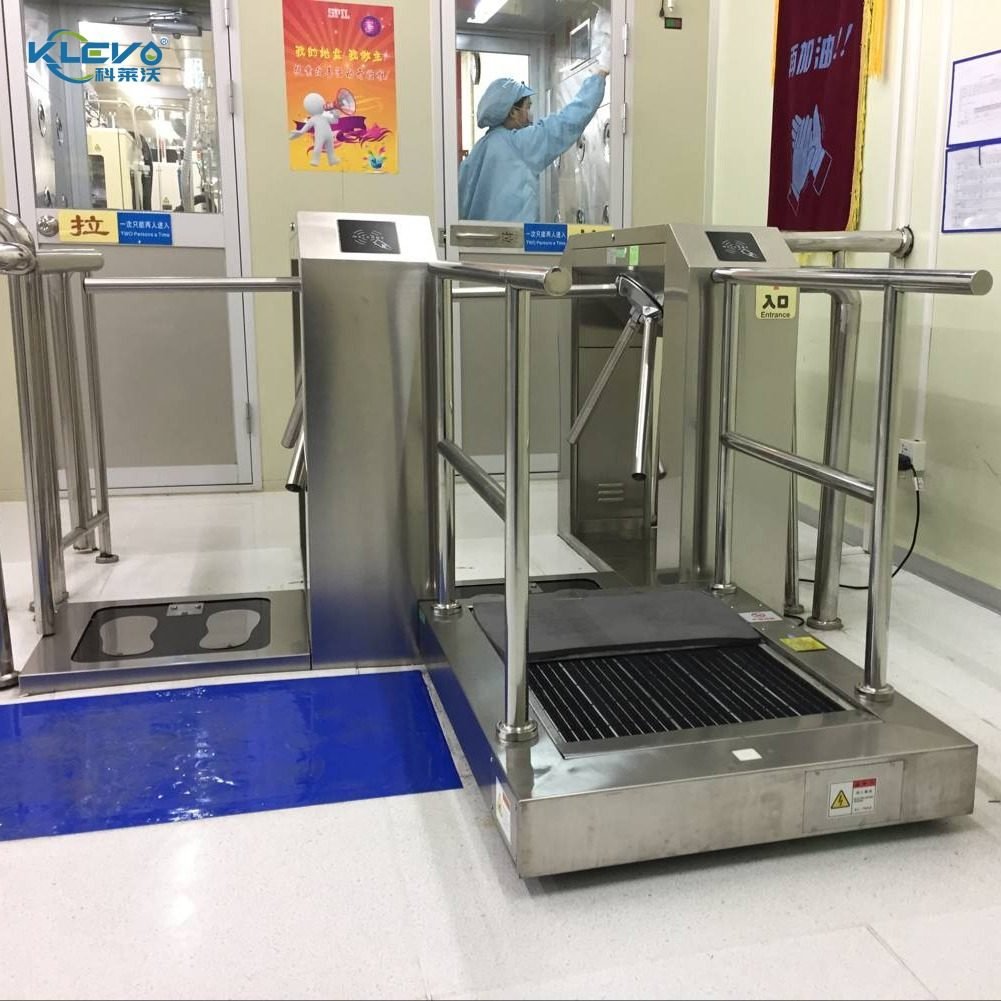

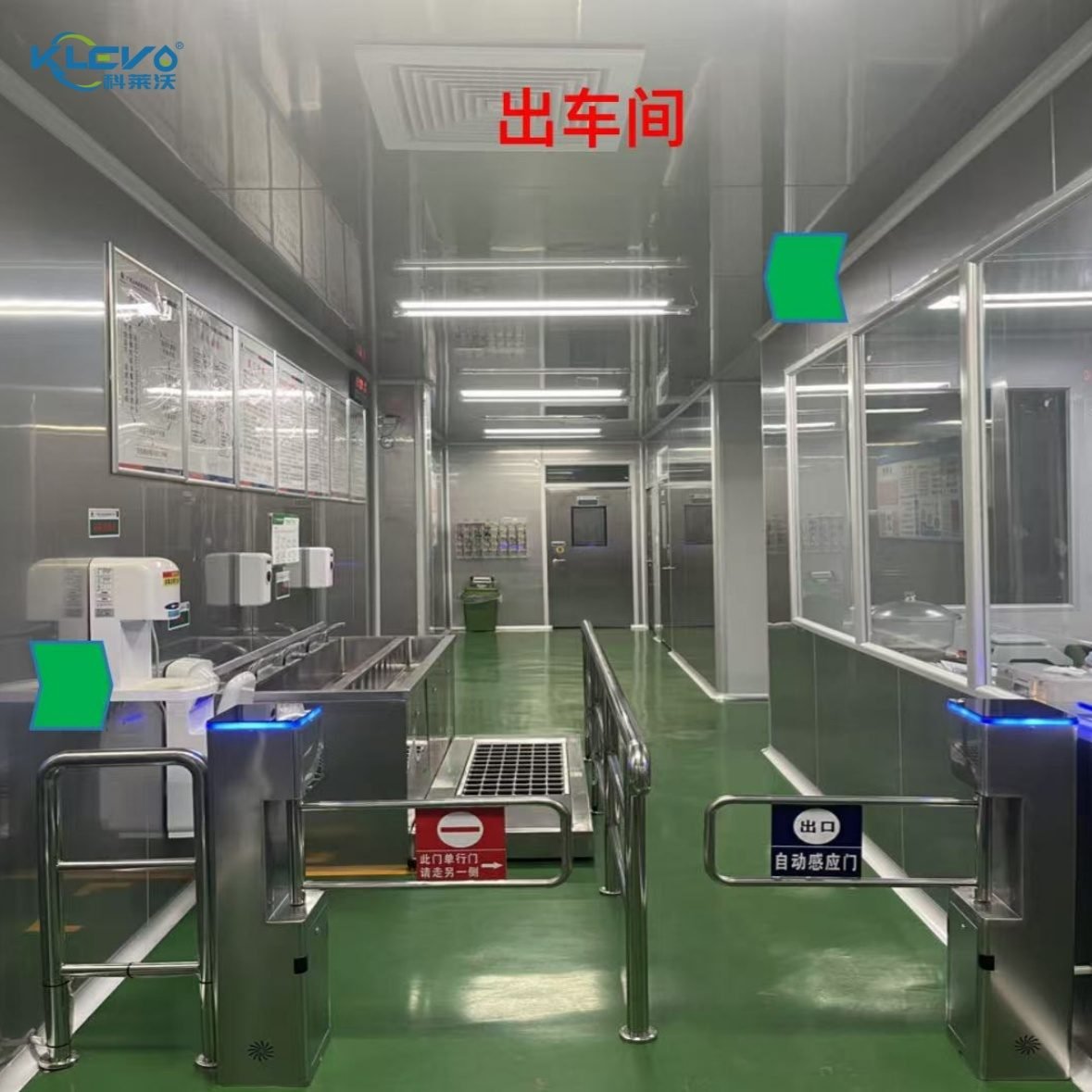

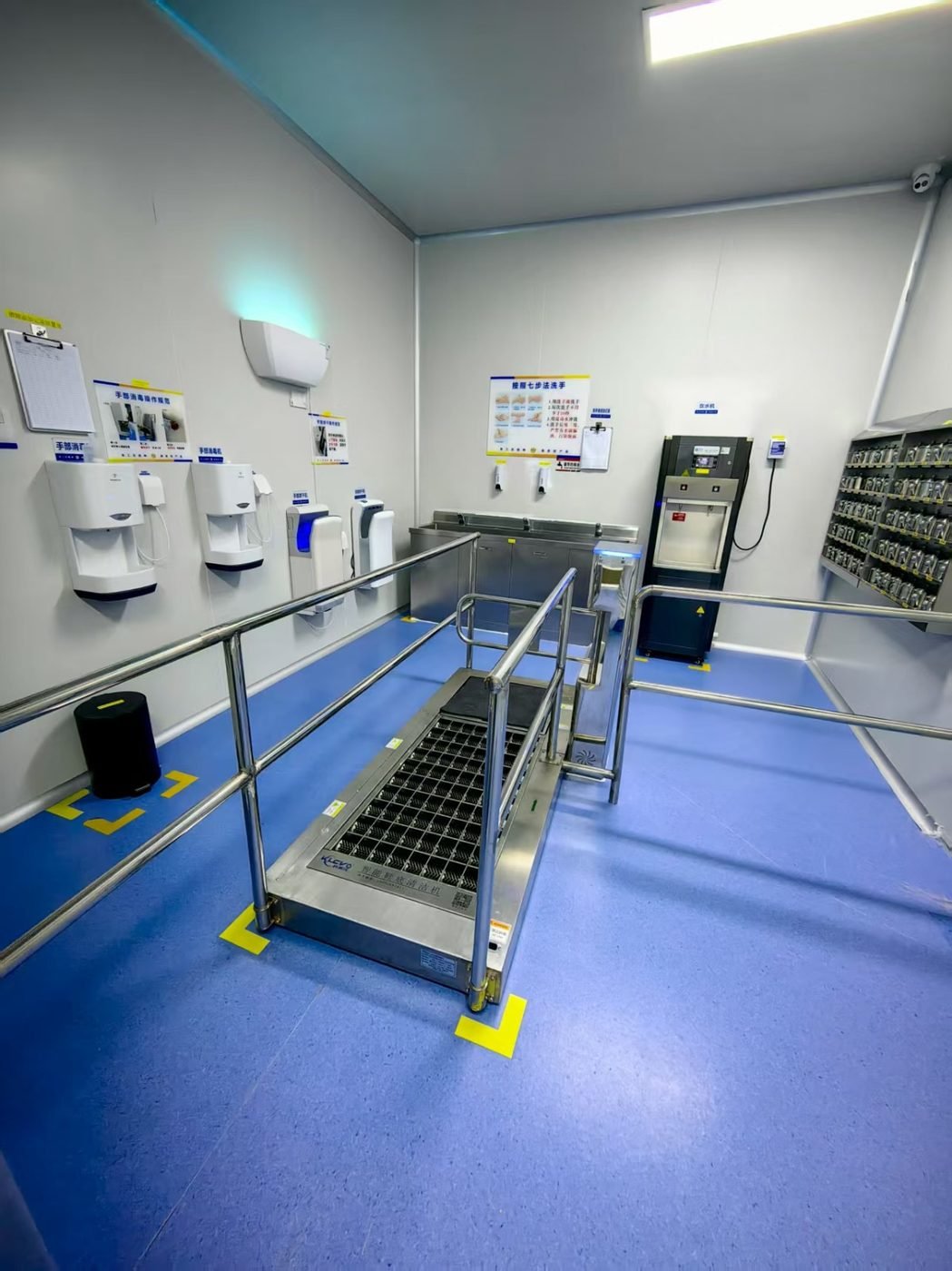

Klevo units are installed at air-shower entrances, gowning corridors, handwash stations and turnstile access lanes — wherever contamination carried on footwear has to stop at the door.
If your entrance has no practical water connection, the GG series is the one — it is completely waterless and plug-and-play. For cleanroom-grade entrances Klevo recommends the GS series, which meets Class 100–1000. Choose the LS series if you want the same wet-cleaning performance with a continuous track, no dead corners and a more streamlined appearance.
Length follows footfall and the number of steps a person takes while crossing. Short models (GG088, GS099, LS100) are stand-on units for lower traffic; the longer models are walk-through, so people keep moving at a natural pace. We size this with you against your door width and shift-change numbers.

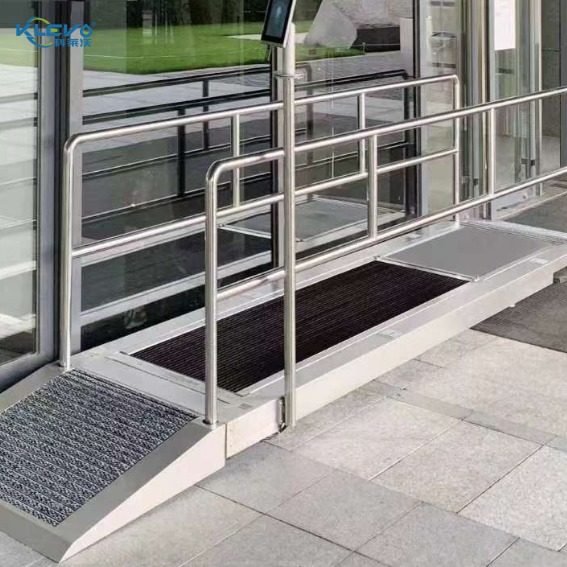

Yes. Klevo will build to custom dimensions on request, with a minimum order quantity of one unit. An entry slope is also available as an optional extra at additional cost.
The GG series needs only a flat surface and a leakage-protected power socket. The GS and LS series additionally need a water inlet and a drain — much like plumbing in a washing machine. Several units can share one main water supply line, but each unit must have its own shut-off valve and its own independent drain pipe of at least DN50/80.
On the GG series, empty or vacuum the dust collection box regularly and replace the modular brush when worn — a few minutes with the power off. On the GS and LS series, keep the water below the marked line and under 40°C, and re-soak the PVA pad for 30 minutes if it dries out. Never rinse the electronic controller with water; wipe the casing only. LS track replacement should be done by trained personnel.
Pricing is based on Klevo’s ex-factory unit prices, exclusive of packaging charges. As the authorised distributor in Pakistan, ISK Technologies handles import, delivery, installation support and after-sales service — send us your model, quantity and site details and we will come back with a landed quotation.
Send us the model you have in mind — or just your door width, footfall and cleanliness class, and we will specify it for you. We reply with a landed quotation including delivery and installation support.
